Underhung Single Girder Overhead Crane

WhatsApp Inquiry Contact Us

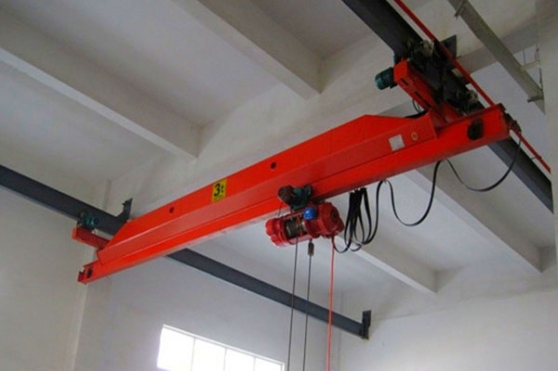

Monorails and underhung cranes with monorail hoist owns tight dimension, low building headroom, light dead weight and light wheel load. It is a light duty track traveling crane with trajectory.The standard capacity is 0.5T, 1T, 2T, 3T, 5T; the span is from 3m to16m. it adopts ground control and works at a temperature of -25--40 centigrade. It is prohibited to use the equipment at combustible,explosive or corrosive environment.

Under Running Single Girder Overhead Crane applies to works and storehouses where it is ≥100 mm height between the rail surface and the rafter of roof truss.

The trolley forms a set with electric hoist, The mechanism is nimble, with safe and reliable motion. It is capable of designing and making non-standard hoisting equipment.





Capacity

T

0.5

Span

m

3.5

8.5

12.5

16.5

20

22.5

Lifting height

m

6/9/12/18/24/30

Lifting speed

m/min

8or (8/0.8)

Trolley travelling speed

m/min

20

Crane travelling speed

m/min

20

Total weight

kg

1060

1540

1876

1960

2745

2976

Max. Wheel load

KN

6.28

7.19

7.97

9.87

10.09

10.66

Rail recommended

Model

120a~145c

Total motor power

kw

1.8kw

Main dimension (mm)

Span(m)

3.5

8.5

12.5

16.5

20

22.5

Rail top to hook center

H4

830

Crane base distance

W

1000

1500

2000

2500

3000

Crane width

B

1500

2000

2500

3000

3500

Hook left limitation

S1

370

Hook right limitation

S2

223



Capacity

T

1

Span

m

3.5

8.5

12.5

16.5

20

22.5

Lifting height

m

6/9/12/18/24/30

Lifting speed

m/min

8or (8/0.8)

Trolley travelling speed

m/min

20

Crane travelling speed

m/min

20

Total weight

kg

1075

1555

1891

2309

3111

3383

Max. Wheel load

KN

9.52

10.19

10.91

11.91

13.87

14.53

Rail recommended

Model

120a~145c

Total motor power

kw

2.5kw

Main dimension (mm)

Span(m)

3.5

8.5

12.5

16.5

20

22.5

Rail top to hook center

H4

847

Crane base distance

W

1000

1500

2000

2500

3000

Crane width

B

1500

2000

2500

3000

3500

Hook left limitation

S1

310

Hook right limitation

S2

130



Capacity

T

2

Span

m

3.5

8.5

12.5

16.5

20

22.5

Lifting height

m

6/9/12/18/24/30

Lifting speed

m/min

8or (8/0.8)

Trolley travelling speed

m/min

20

Crane travelling speed

m/min

20

Total weight

kg

1162

1541

2184

2783

3585

3903

Max. Wheel load

KN

16.35

16.32

17.65

19.03

20.97

21.73

Rail recommended

Model

120a~145c

Total motor power

kw

4.2kw

Main dimension (mm)

Span(m)

3.5

8.5

12.5

16.5

20

22.5

Rail top to hook center

H4

1020

Crane base distance

W

1000

1500

2000

2500

3000

Crane width

B

1500

2000

2500

3000

3500

Hook left limitation

S1

290

Hook right limitation

S2

170



Capacity

T

3

Span

m

3.5

8.5

12.5

16.5

20

22.5

Lifting height

m

6/9/12/18/24/30

Lifting speed

m/min

8or (8/0.8)

Trolley travelling speed

m/min

20

Crane travelling speed

m/min

20

Total weight

kg

1292

1840

2379

3019

3704

4028

Max. Wheel load

KN

23.22

23.07

24.07

25.50

27.11

27.87

Rail recommended

Model

120a~145c

Total motor power

kw

5.7kw

Main dimension (mm)

Span(m)

3.5

8.5

12.5

16.5

20

22.5

Rail top to hook center

H4

1134

Crane base distance

W

1000

1500

2000

2500

3000

Crane width

B

1500

2000

2500

3000

3500

Hook left limitation

S1

290

Hook right limitation

S2

170



Capacity

T

5

Span

m

3.5

8.5

12.5

16.5

20

22.5

Lifting height

m

6/9/12/18/24/30

Lifting speed

m/min

8or (8/0.8)

Trolley travelling speed

m/min

20

Crane travelling speed

m/min

20

Total weight

kg

1599

2271

2996

3675

5056

5493

Max. Wheel load

KN

37.33

37.18

38.20

39.57

42.71

43.69

Rail recommended

Model

120a~145c

Total motor power

kw

9.1kw

Main dimension (mm)

Span(m)

3.5

8.5

12.5

16.5

20

22.5

Rail top to hook center

H4

1320

Crane base distance

W

1000

1500

2000

2500

3000

Crane width

B

1500

2000

2500

3000

3500

Hook left limitation

S1

360

Hook right limitation

S2

150



Capacity

T

10

Span

m

3.5

8.5

12.5

16.5

20

22.5

Lifting height

m

6/9/12/18/24/30

Lifting speed

m/min

7or (7/0.7)

Trolley travelling speed

m/min

20

Crane travelling speed

m/min

20

Total weight

kg

2372

3189

4170

5161

6975

7532

Max. Wheel load

KN

64.08

69.85

71.01

72.90

77.10

78.33

Rail recommended

Model

140b~163c

Total motor power

kw

15.2kw

Main dimension (mm)

Span(m)

3.5

8.5

12.5

16.5

20

22.5

Rail top to hook center

H4

1670

Crane base distance

W

1000

1500

2000

2500

3000

Crane width

B

1500

2000

2500

3000

3500

Hook left limitation

S1

500

Hook right limitation

S2

500



Double welding box girder, beam deflection with DIN/FEM standard

Steel Material: Chinese standard Q235B and Q345B

Trolley rail is made of high strength hot rolled flat steel (16 Mn)

Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster

The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine
The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate
Maintenance walkway is located on one side of the main girder, consisting of flower pattern plate, 1050meters handrail.

1. Both side of all the steel plate of crane are pretreatment by pretreatment production line,

Sand blasting-- Primer spray--Primer drying. Eliminate the innerstress of steel plate, increase the adhesive force of the steel structure. Ensure the appearance and anticorrosion quality.

2. Steel plate cutting adapt whole sets Messer CNC plasma cutting machine from Germany, very fast cutting speed, little deformation, High precision, Deviation could be controlled within 1mm, it insure the raw material at high quality standard and can reach top level in the industry.

3. The welding of main beam adapt high efficiency and intelligent welding robot, Henan Mine Crane Co,.LTD are No.1 enterprise who adapt this high technology machine. The welding joint inside of the main beam adapt advanced MAG welding, adapt Ar+CO2 mixed protective gas, The 4 welding joint outside of the main beam adapt automatic submerged-arc fillet welding machine.

4. The welding of main beam adapt radiographic inspection and ultrasonic flaw detection for the welding joint and fillet weld position

5. The welding of end beam adapt double gun gantry submerged arc welding, highly welding quality ensure the stable quality of the crane effectively.

6. Adapt the steel plate rolling drum and wireless steel tube, Henan Mine Crane Co,.LTD has a set of steel plate rolling drum producing and processing line which is industry-leading level. From pre-bending by 1250t press machine, to Edge rolling by three-roller plate roll, at last the longitudinal joint and circumferential joint of drum are welded by automatic welding center and drum processed by heavy duty CNC horizontal machine tool.

7. The wheel and wheel axle and treating by high efficiency quenching and tempering, it can eliminate the internal stress effectively and ensure the processing precision,

The trolley frame, drum, and bogie frame and related big welding structure are treated by Annealing in the natural gas annealing furnace to ensure the Machining accuracy after welding. Henan Mine Crane Co,.LTD have car bottom  natural gas annealing furnace, the furnace chamber inside size (length*width*heigh) is 10000mmx4000mmx4000mm, this annealing furnace can satisfy the Stress-Relieving annealing treatment after welding for the trolley frame, drum, bogie frame, balance beam, spreader and all kinds of welding structure on the crane, Only Henan Mine Crane Co.,LTD  has this ability in China Crane Hometown.

8. As the top industrial crane manufacturers, Henan Mine Crane Co,.LTD has top advanced processing and manufacturing equipment and processing technology in the crane industry all over China, at the same time,Henan Mine Crane Co,.LTD take the head in achieve the best and better management, best and better manufacturing, Try the best to ensure the Henan Mine Crane Co,.LTD product quality and satisfy the demand of customer.

Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible

Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device

 Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling

All movements can be switched off by actuating the emergency-off switch at the control station via a main contact

High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling

Safety hook latch used for avoiding the lifted material out off from the hook

Audible and visual alarm device to inform the person stay near by the travelling crane

Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism

Protective earth conductor is fitted as standard

Voltage lower protection system

Current overload protection system



Design rules for cranes GB/T3811-2008

Safety rules for lifting appliances GB6067.1-2010

General Bridge Crane GB/T14405-2011

General Gantry Crane GB/T14406-2011

Overhead crane and gantry crane manufacturing and tolerances of rail installation GB/T10183-2005

Crane test specification and procedures GB/T5905-1986

Crane electric control equipment JB/T4315-1997

Important application wire rope GB8918-2006

Carbon structure steel GB/T700-2006

 Low alloy high strength structure steel GB/T1591-2008

Welding joint radiographic inspection standard JB928-1994

Steel welding joint manual ultrasonic flaw detection way GB11345-1989



Henan Mine Crane CO.,LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,

Henan Mine Crane Co,.LTD crane has a lot of honor for overhead crane certification for different overhead crane types

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

The Single girder overhead crane include1 ton bridge crane, 2 ton bridge crane, 3 ton bridge crane, 5 ton bridge crane, 10 ton bridge crane, 15 ton bridge crane, 16 ton bridge crane 20 ton bridge crane

If you need bigger capacity. Please check the double girder overhead crane.
