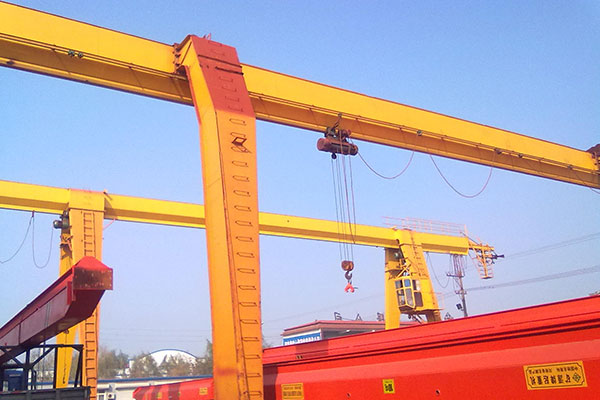

L-Shaped Legs Single Girder Gantry Crane with Hoist

WhatsApp Inquiry Contact Us

L-Shaped Legs Single Girder Gantry Crane with Hoist is applied for handling and conveys operation outdoors, or stock ground, railway station, sea port cargo area, etc. L-Shaped Legs Single Girder Gantry Crane with Hoist can be also used to do some special operations lifting large diameter and large length equipment.

Lifting capacity

T

3

5

10

16

Operation type



Handle/remote control/cab

Speed

Hoist lifting

m/min

8 ,8/0.8

8,8/0.8

7,7/0.7

3.5



Hoist travelling

m/min

20

20

20

20



Crane  travelling



20

20

20

20







30,40

30,40

30,40

30,40

Motor

Hoist lifting

Type  /kw

ZD41-4/4.5

ZD141-4/7.5 ZDS10.8/4.5

ZD151-4/13 ZDS11.5/4.5

ZD151-4/13



Hoist travelling



ZDY12-4/0.4

ZDY121-4/0.8

ZDY21-4/0.8×2

ZDY121-4/0.8×2



Trolley  travelling



ZDY21-4/0.8×2

YZR132M1-6/2.2×2

YZR160M1-6/6.3×2

YZR160M1-6/6.3×2







ZDY21-4/1.5×2

YZR132M2-6/3.7×2



YZR160M2-6/8.5×2







ZDR22-4/1.5×2

YZR132M2-6/3.7×2

YZR160M1-6/6.3×2

YZR160M2-6/8.5×2







ZDR24-4/2.2×2

YZR160M1-6/5.5×2



YZR160L2-6/11×2

Electric hoist

Type

CD1/MD1

CD1/MD1

CD1/MD1

HC/HM

Lifting height

m

6,9,12

Work classifications



A3,A4

Power



380V 50HZ 3phase AC or according to customers' demand



1. Both side of all the steel plate of crane are pretreatment by pretreatment production line, Sand blasting-- Primer spray--Primer drying. Eliminate the innerstress of steel plate, increase the adhesive force of the steel structure. Ensure the appearance and anticorrosion quality.

2. Steel plate cutting adapt whole sets Messer CNC plasma cutting machine from Germany, very fast cutting speed, little deformation, High precision, Deviation could be controlled within 1mm, it insure the raw material at high quality standard and can reach top level in the industry.

3. The welding of main beam adapt high efficiency and intelligent welding robot, Henan Mine Crane CO., LTDare No.1 enterprise who adapt this high technology machine. The welding joint inside of the main beam adapt advanced MAG welding, adapt Ar+CO2 mixed protective gas, The 4 welding joint outside of the main beam adapt automatic submerged-arc fillet welding machine.

4. The welding of main beam adapt radiographic inspection and ultrasonic flaw detection for the welding joint and fillet weld position.

5. The welding of end beam adapt double gun gantry submerged arc welding, highly welding quality ensure the stable quality of the crane effectively.

6. Adapt the steel plate rolling drum and wireless steel tube, Henan Mine Crane CO., LTD has a set of steel plate rolling drum producing and processing line which is industry-leading level. From pre-bending by 1250t press machine, to Edge rolling by three-roller plate roll, at last the longitudinal joint and circumferential joint of drum are welded by automatic welding center and drum processed by heavy duty CNC horizontal machine tool.

1. Weight overload protection device.

2. Top quality long time bearing polyurethane materials buffer.

3. Lifting limit switch

4. Crane travelling limit switch.

5. Trolley travelling limit switch.

6. Voltage lower protection function.

7. Emergency stop system.

8. Wind speed indicator

9. Current overloads protection system and so on!

Design rules for cranes GB/T3811-2008

Safety rules for lifting appliances GB6067.1-2010

General Gantry Crane GB/T14406-2011

Gantry crane manufacturing and tolerances of rail installation GB/T10183-2005

Crane test specification and procedures GB/T5905-1986

Crane electric control equipment JB/T4315-1997

Important application wire rope GB8918-2006

Carbon structure steel GB/T700-2006

Low alloy high strength structure steel GB/T1591-2008

Welding joint radiographic inspection standard JB928-1994

Steel welding joint manual ultrasonic flaw detection way GB11345-1989



Henan Mine Crane could arrange engineer to do supervision of installation, make the load test, do commissioning, training of the buyer's workers, the buyer should be responsible for each of our technician’s accommodation, meals, round-trip tickets, travel expenses and self-security. The engineer’ salary is USD100.00 per day abroad.

1. Steel structure: Q235B/Q345B carbon structural steel with seamless once forming technology more strong and elegant. Suitable for different operation temperature.

2. Lifting mechanism: Reducer, drum, motors protection class F class, China or World top quality motor brands, such as Jiamusi, Nanjing motor, ABM, etc.

3. Hook: Finest steel forged hook, long using life

4. Wheels: Vacuum casting, with compact structure, convenient maintenance, high transmission efficiency and long service life

5. Travel mechanism: With China or world famous crane motor, reducer supplier, such as Nanjing motor, SEW etc.

6. Electrics: Chint, Schneider or Siemens etc.
